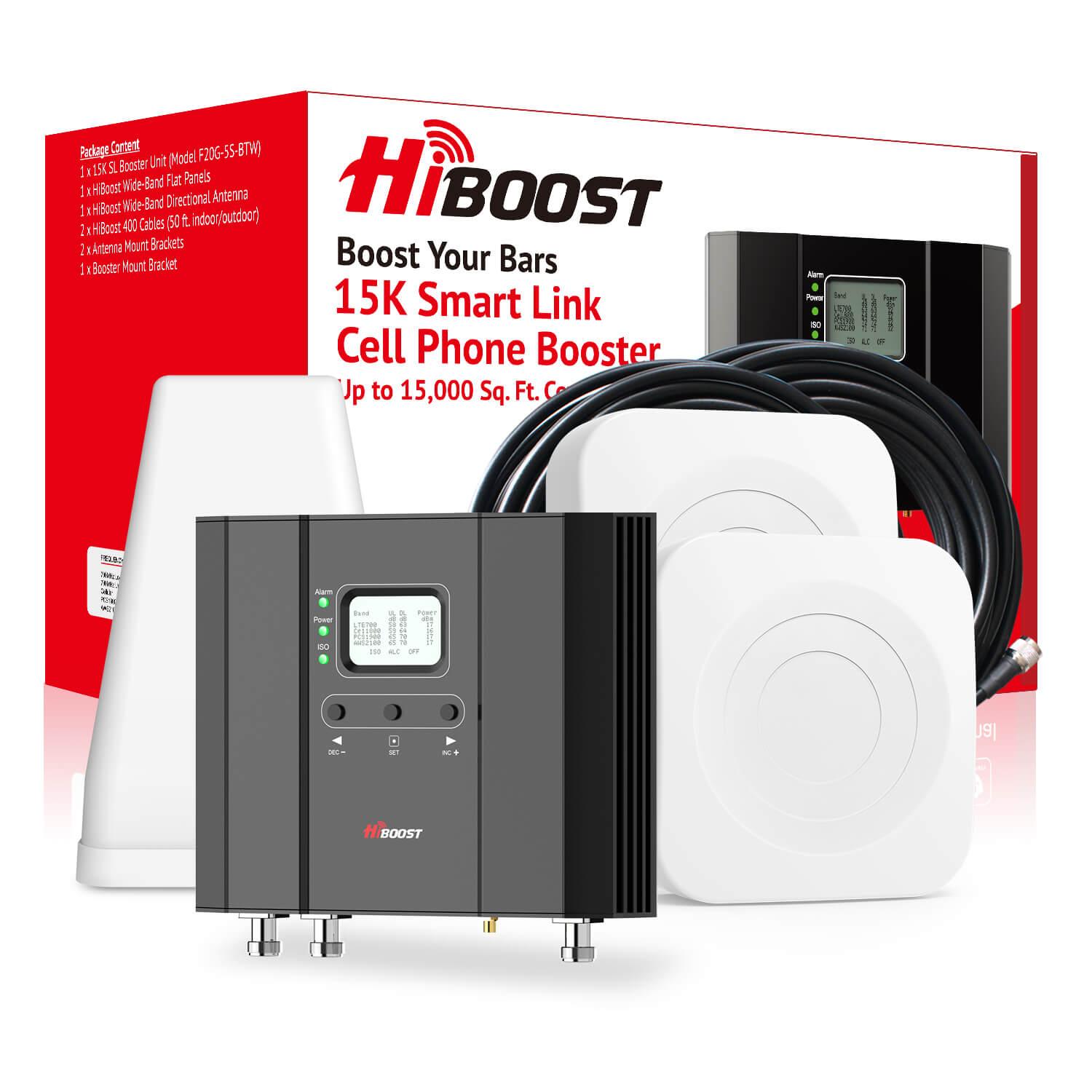

HiBoost 15K Smart Link
The HiBoost 15K Smart Link (F20G-5S-IoT) was fundamentally designed to help maximize your 3G, 4G LTE and 5G signal by providing the most powerful consumer solution. It’s ideal for customers with a weak outdoor signal for homes and offices up to 15,000 square feet.
Networks : Band 12, Band 13, Band 5, Band 25/2, Band 4
Coverage : 7,000-15,000 Sq. Feet
Max.Gain : 70 dB
- HiBoost App monitor
- Quality carrier-grade metal design
- Better talk, text & stream guaranteed
- Works with all US and Canadian carriers
- 5G Compatible
15K Smart Link
The 15K Smart Link Cell Phone Signal Booster is featured with carrier-grade components, powerful 70 dB gain (amplification), and excellent output power (uplink: 24 dBm, downlink: 12 dBm). It greatly enhances cellular connectivity for all cellular devices, which is perfect for increasing your signal bars in a bad reception area, even if you only have one bar outside your building.

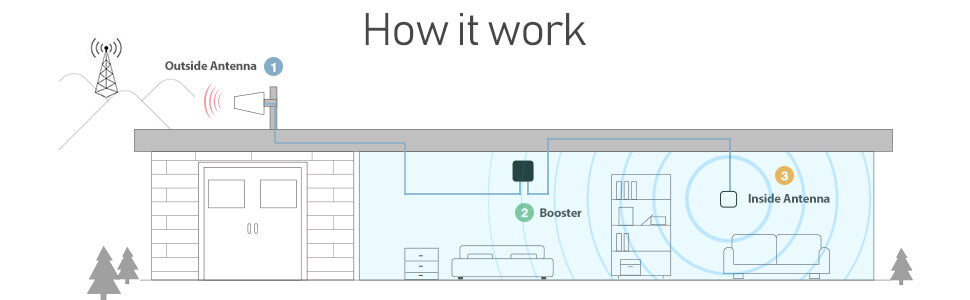

1. The outdoor antenna picks up the signal from the nearest cell tower and sends it to the booster.
2. The booster amplifies the signal and transmits it to the indoor panel antenna.

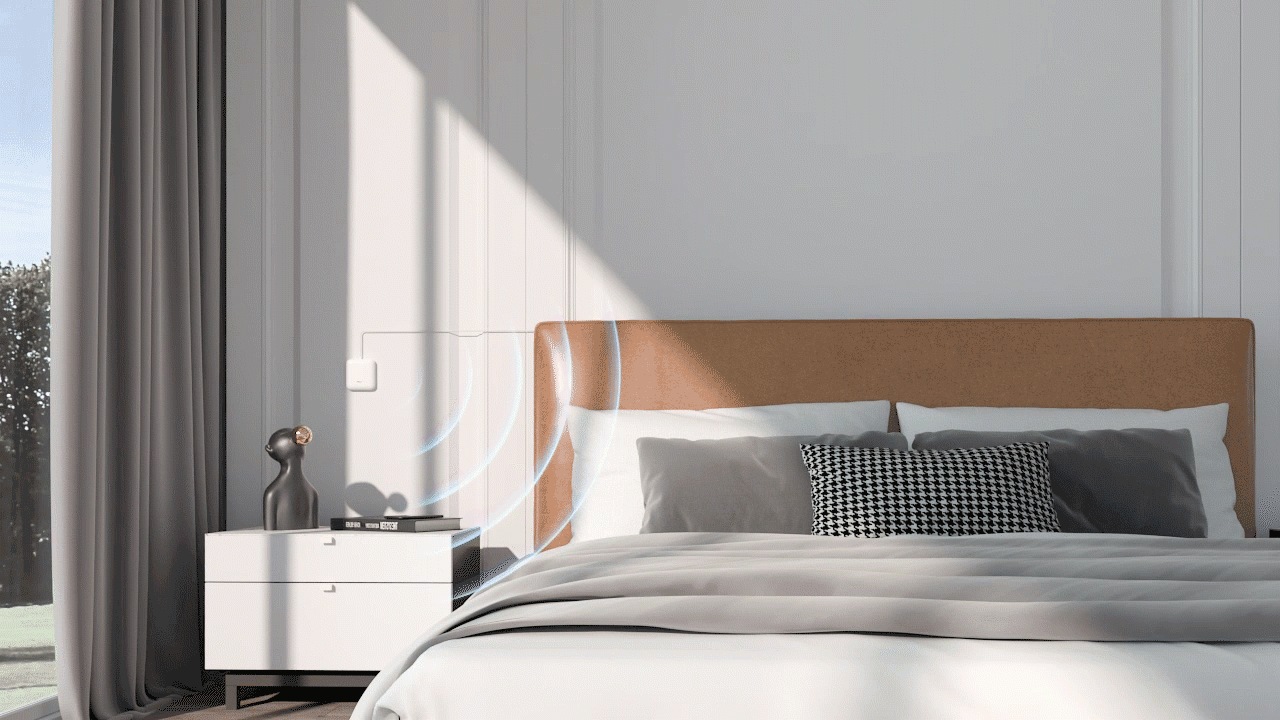

3. The indoor panel antenna broadcasts the enhanced signal throughout the desired area.
4. This is the moment! Your mobile phone receives a strong signal and you enjoy seamless calls and data!
Who is 15K Smart Link for?
For a large home/office size (7,000 to 15,000 sq ft).
Good for: Multi rooms or large homes with weak outside signal
Not recommended for: needing whole building coverage above 15K sq ft
Effective coverage area depends on the quality of outside signal strength
Clearer calls,faster internet
With up to +70 dB gain of amplification, the signal amplifier improves weak signals for all your wireless devices. Stronger cellular connectivity allows you to enjoy clearer calls and faster internet!
Within coverage wherever at home
Wherever you live, urban, suburban or rural areas, whatever phone and service provider you’re using, whenever you need coverage at home, the 15K Smart Link has you covered. It works with all kinds of smartphones, hotspots, tablets, and notebooks on all US and Canadian providers.
Boost more than cellular signal
Enhancing your cellular connectivity also boosts your business productivity and lets you stay connected with those who matter. Your entertainment never stops with loading screens! It also provides greater peace of mind in any emergencies with constant and reliable service. No Wi-Fi is needed and there is no monthly subscription fee.
Set-up and monitoring via HiBoost APP
HiBoost is the first to provide an all-in-one signal assistant, the Signal Supervisor App. It’s a free and user-friendly app for users for simpler installation and convenient technical support. It has served and earned a stellar reputation from more than 100,000 users over the past decade!
Application scenarios
Home
Office
Garage
Metal building
Quality with carrier-grade components
The Smart Link boosters are featured with carriers-grade components, which blend seamlessly into your home with assured performance
High gain outdoor antenna
Capture signals from distant cell phone towers. This signal booster kit includes a powerful 9 dBi directional outdoor antenna to receive signals.
Easy-to-read LCD screen
Users can see real-time data about gain, frequency, and output power directly from the display. Indicators on the LCD screen give hints about its performance status.
True heat dink design
Its integral aluminum fin design helps dissipate heat while in operation, which allows the booster to maximize its performance.
LMR400 low loss cables
Less signal loss from the outdoor antenna to the indoor one. Equipped with industry-standard Type-N connectors, it protects the signal system from rain, dirt, and dust.
FAQ

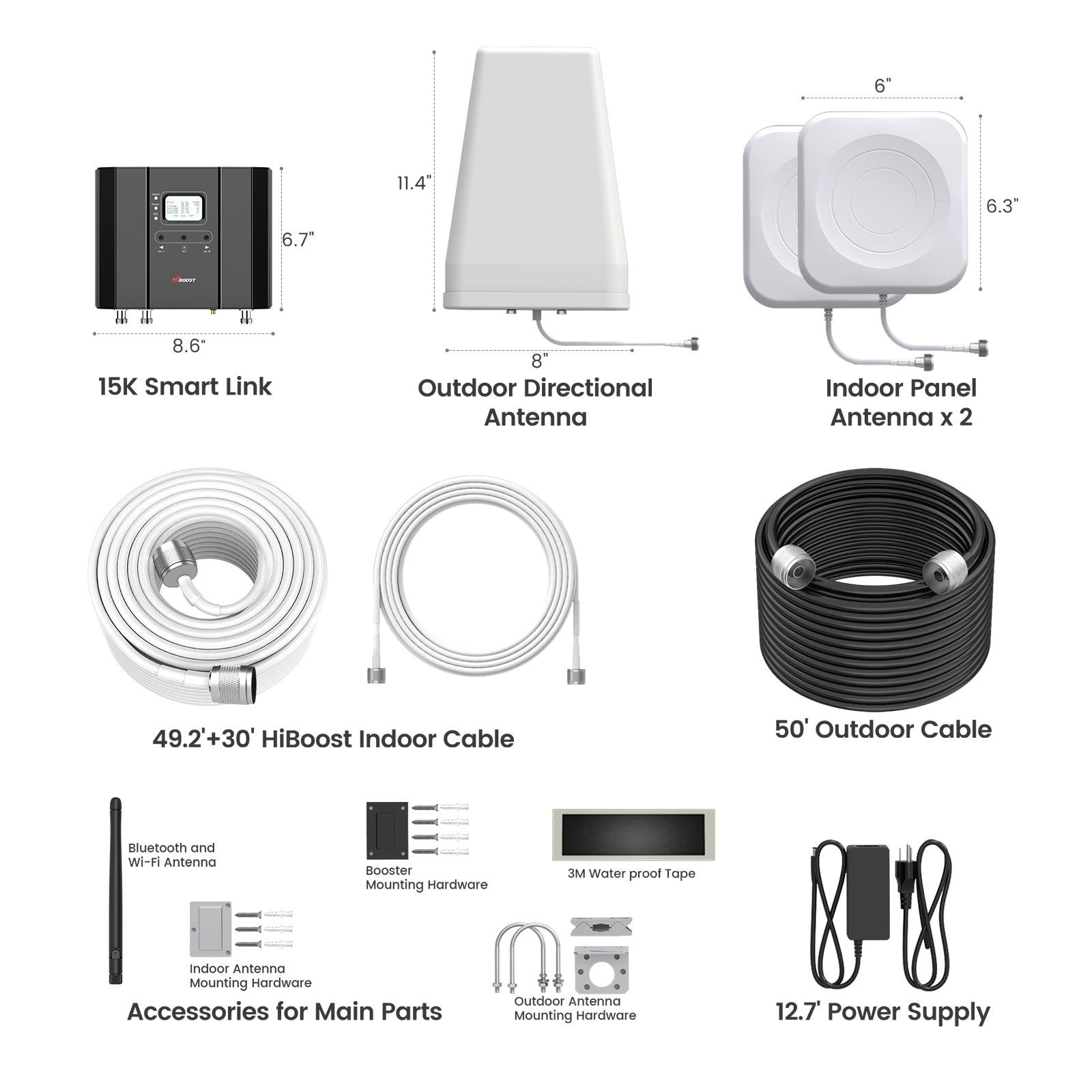

What’s included in the kit?
It’s a complete kit and all parts included.
What's the difference between the Plus and Smart Link?
In addition to different amplification, appearances, and prices, the indoor antenna of the Plus is built in the amplifier. You do not need to run extra indoor cable for the indoor antenna like a Smart Link booster with a panel indoor antenna. Besides the Smart Link is featured with a carrier-grade metal case while Plus comes with an ABS case.
Tech Specs
698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755
728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155
CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all other cellular standards
70 dB
UL 24 dBm, DL 12 dBm
≥ 25 dB / 1 dB step
N-Female
50 ohm
IP40
8.6 in×6.5 in ×2 in /218 mm×165 mm×50 mm
≥ 5.0 lb / 2.2 kg
Input AC 100~240 V, 50/60 Hz, Output DC 12 V/3 A
