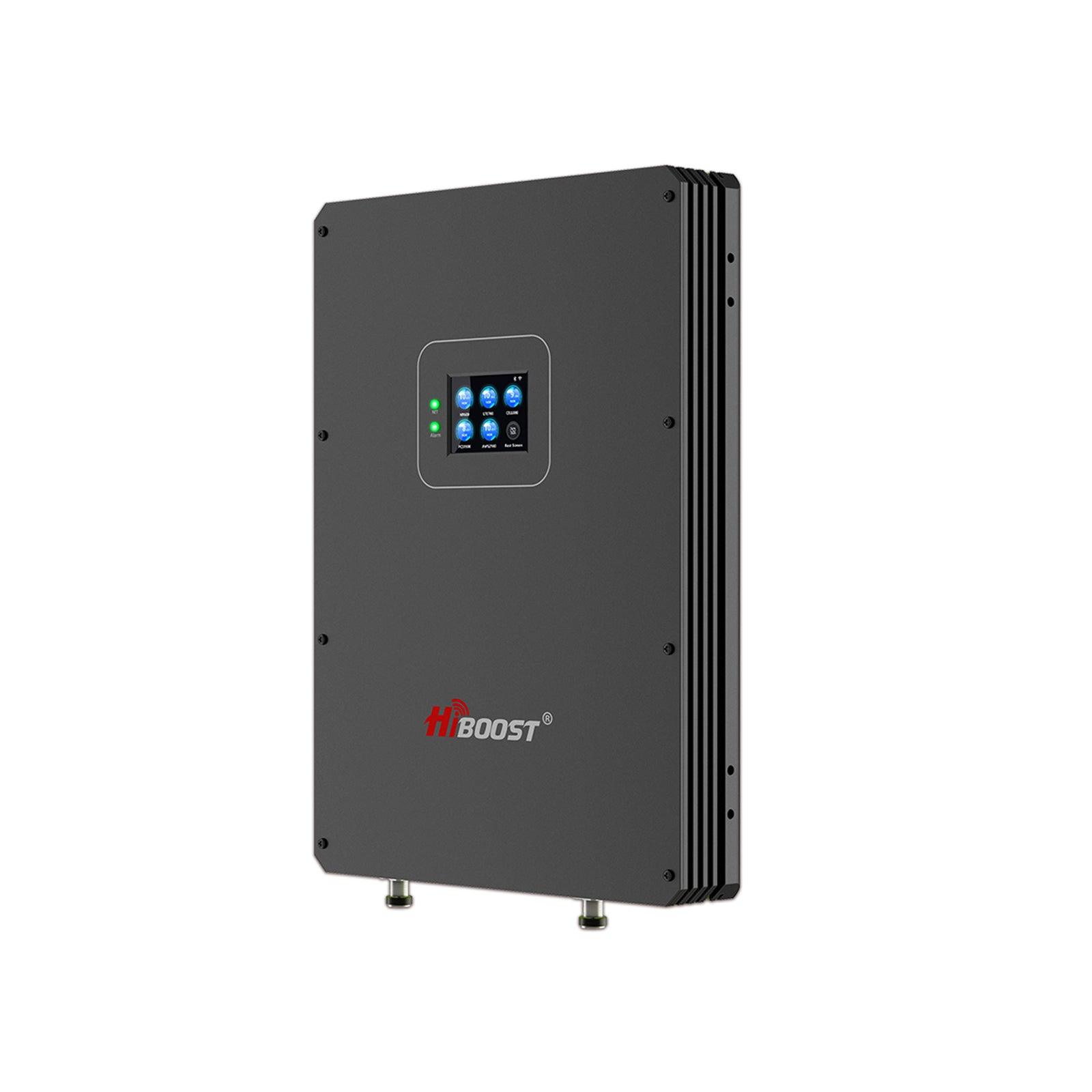

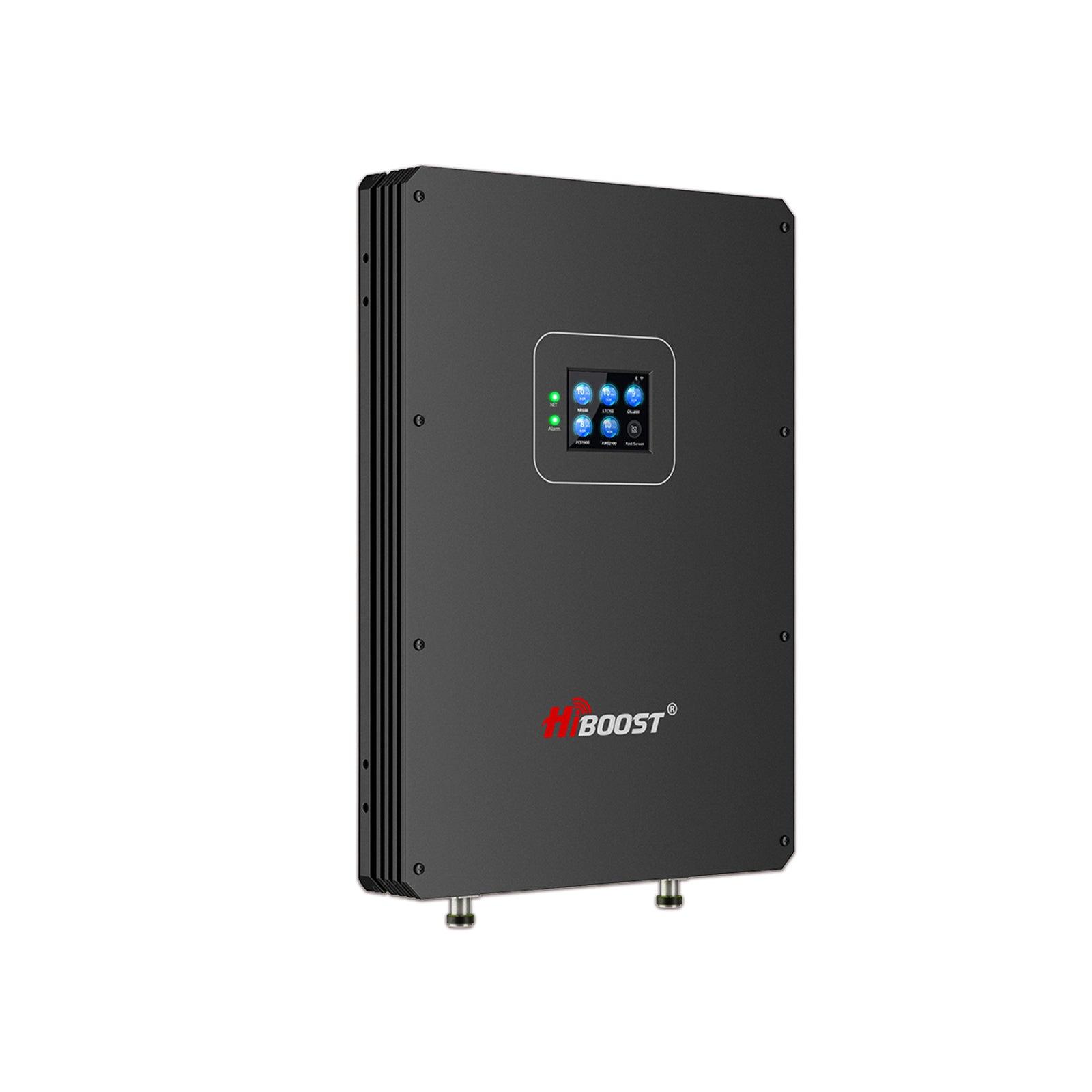

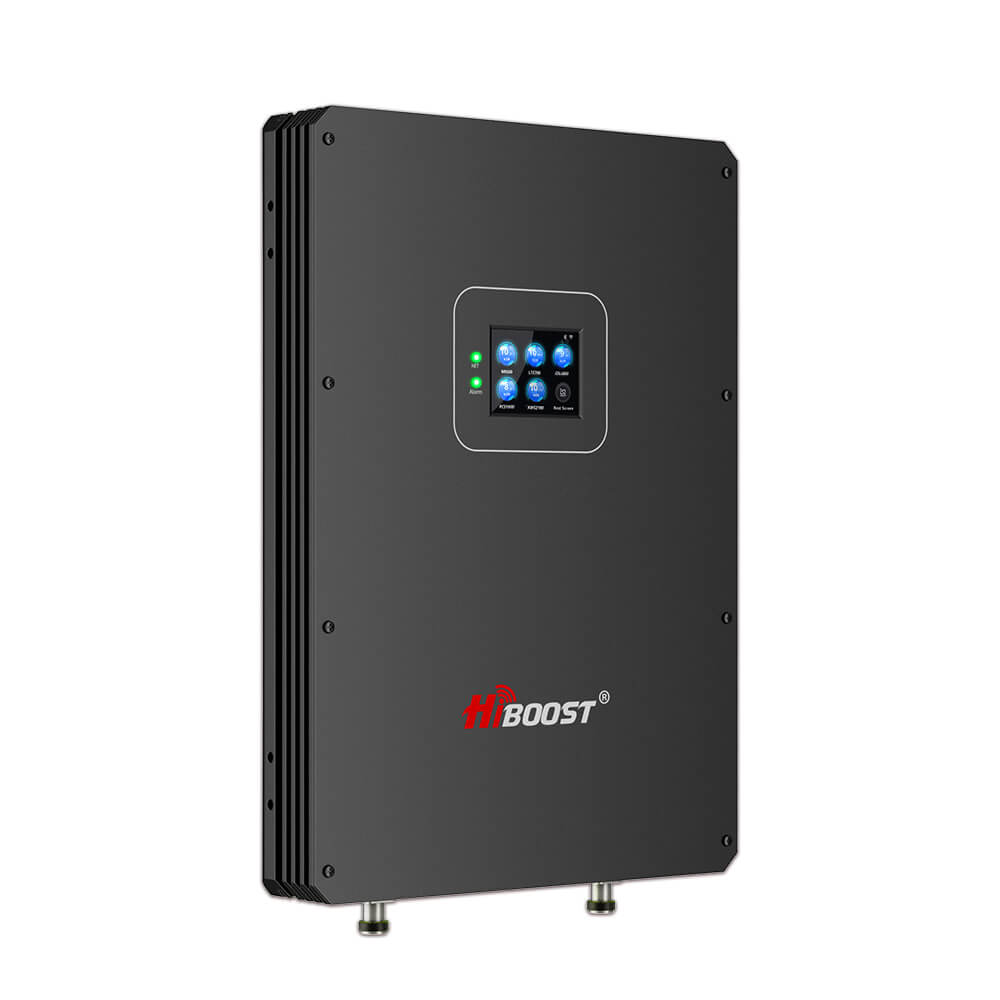

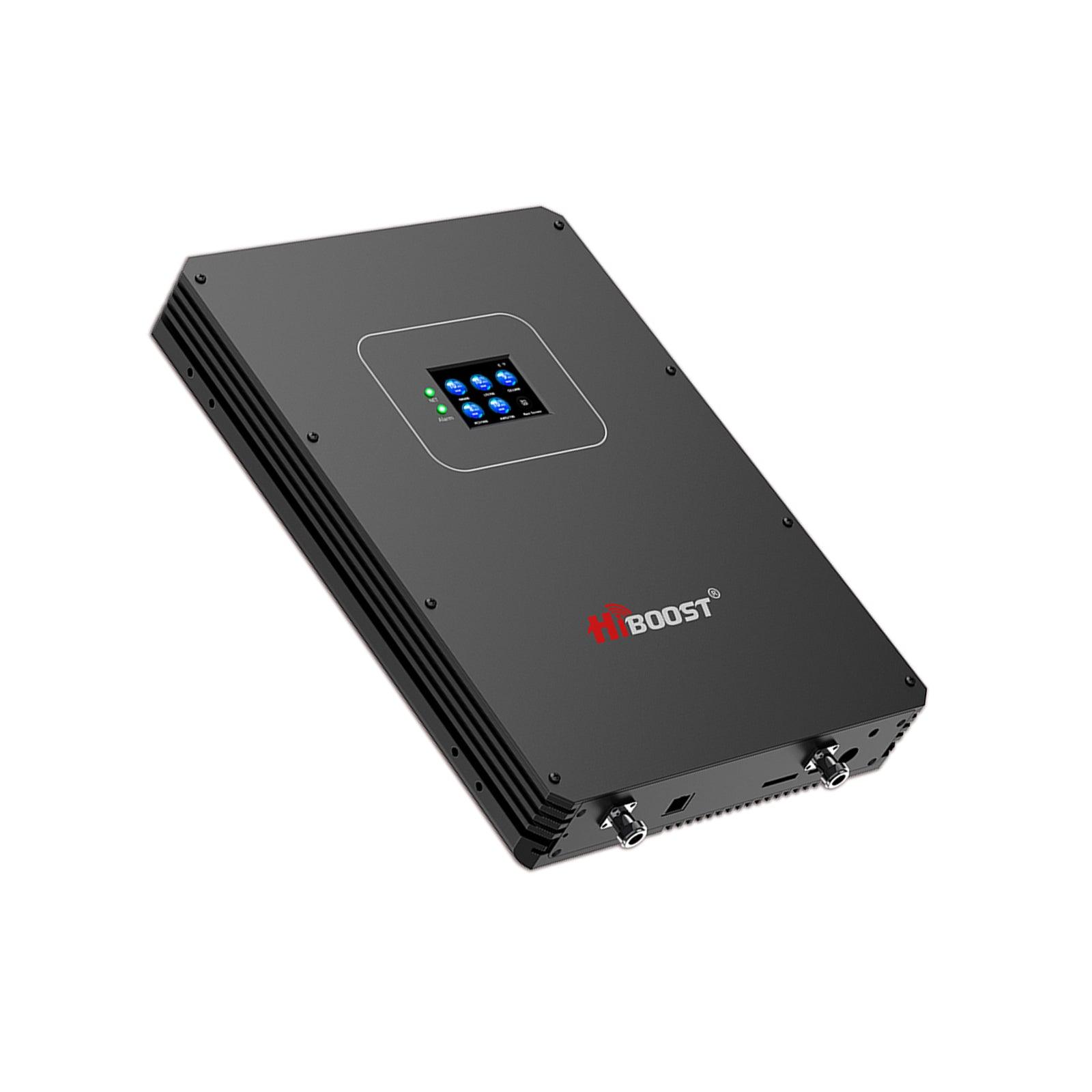

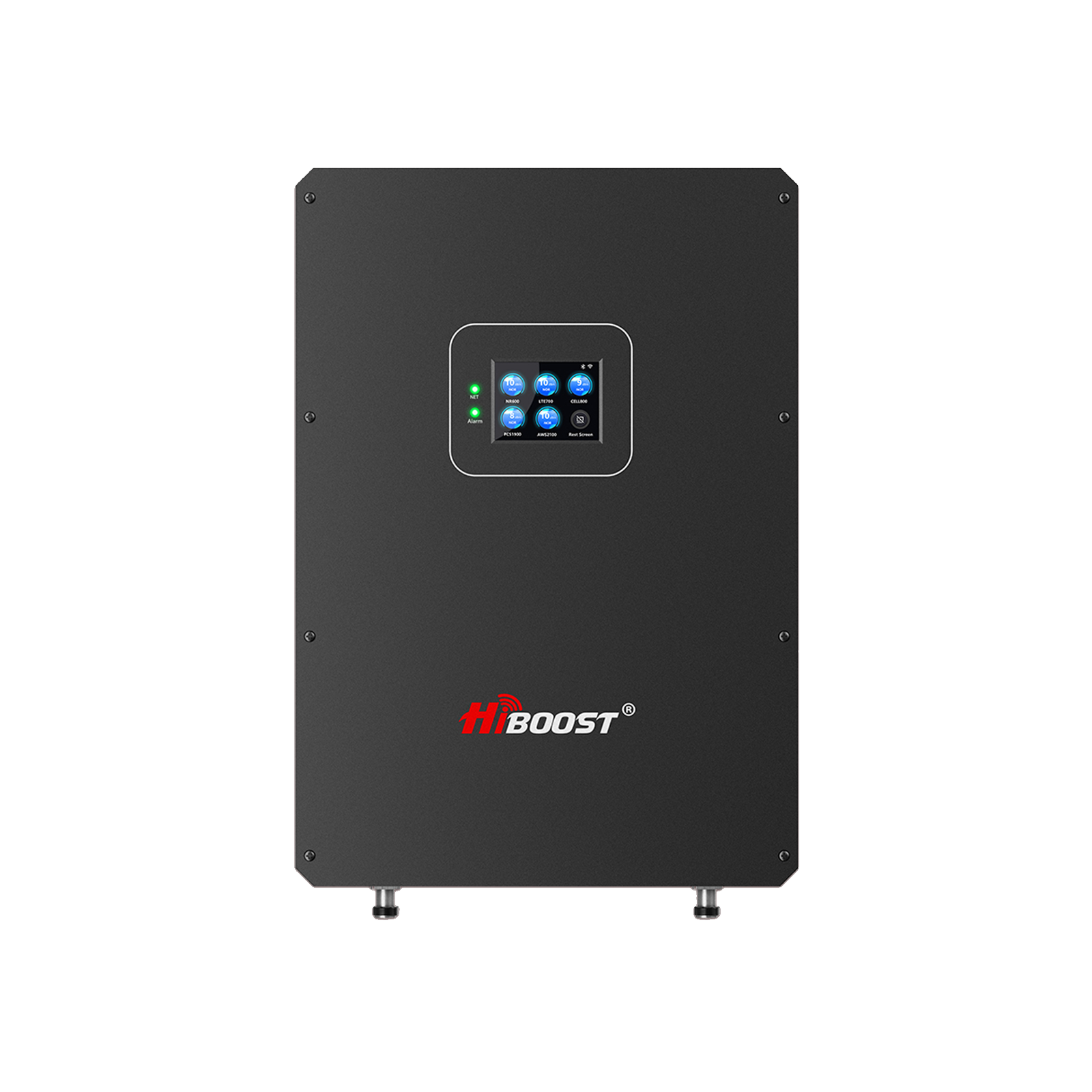

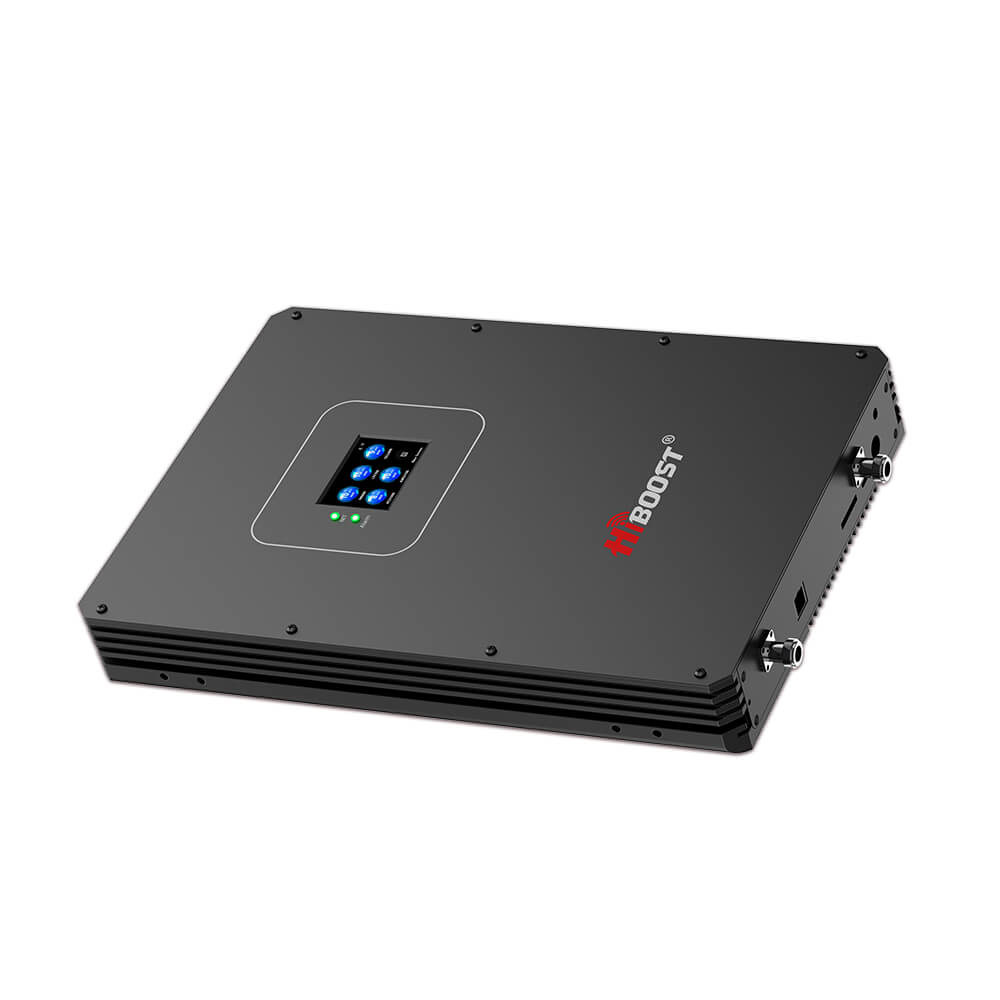

HiBoost F27K-6S-IoT 5G
The Industrial 100K 5G is an industrial booster system designed for the largest buildings, including office centers, warehouses, medical centers, apartment buildings, and other commercial/industrial facilities that need better cell signal reception with high user demands. Improves both voice and data 4G/5G to reduce dropped calls and missed emails and texts, keeping your business, employees, residents, and/or guests connected with a stronger cell signal.
People are viewing this right now
- MaxGain:85dB
- Compatible with NR600,upper and lower 700 LTE bands,Cellular 800, PCS1900, AWS2100
- Automatic and manual gain control functions
- Boosts signal for six bands of cellular frequency, including T-Mobile’s 600 MHz band 71. Supports 200+ simultaneous users per band
- Heavy-duty metal case with heat sink and easy-to-read backlit LCD display
- Boosts voice,text & 5G/4G data for all major carriers

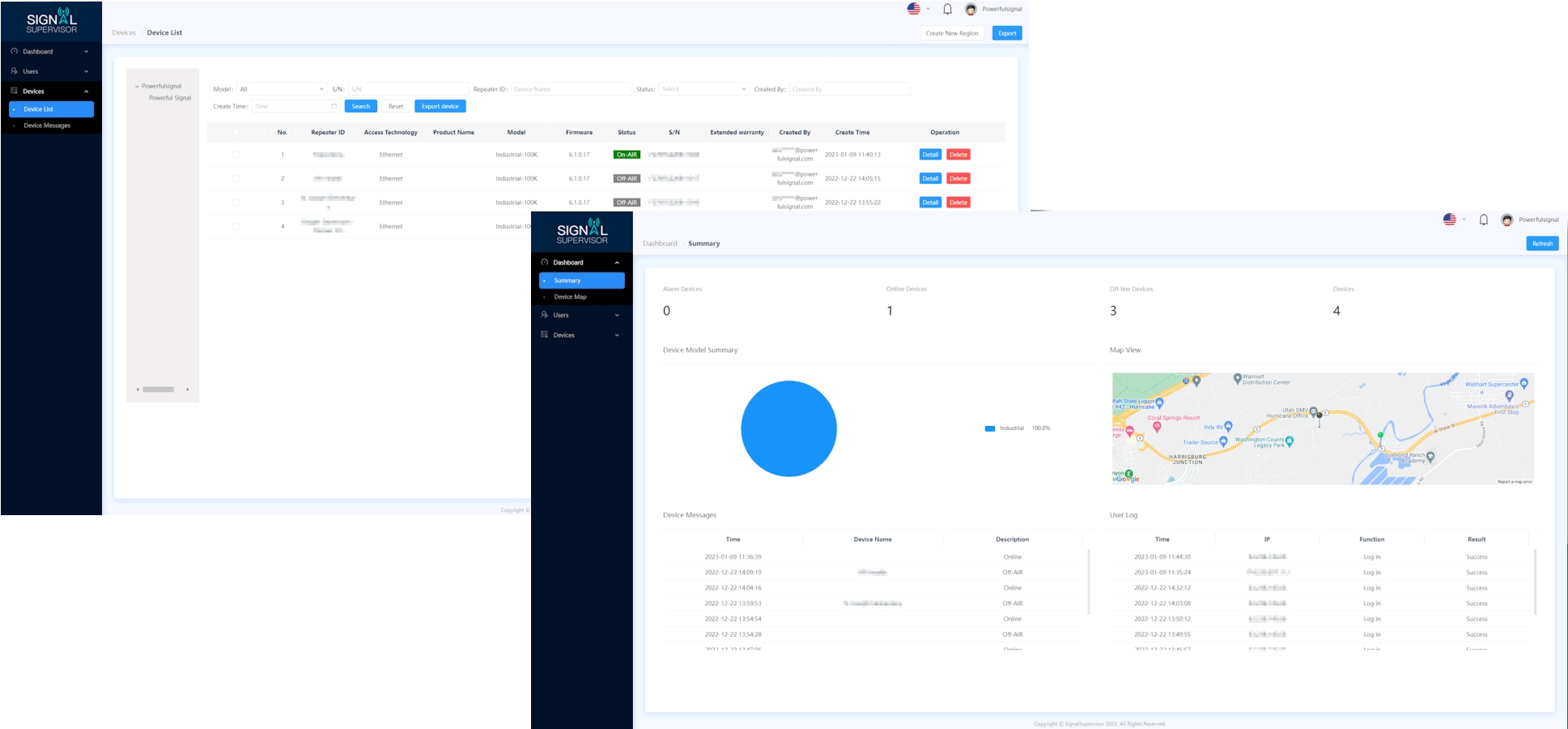

Web Portal
Signal Supervisor
With an Ethernet connection or SIM card, you can monitor, administer, and receive email alerts from your HiBoost Industrial amplifier system from any device with a web browser and internet access. You can also administer multiple systems at one or multiple locations.
Powerful design
Boost performance for every carrier
Users can boost signal for any type of cellular device on any network such as AT&T, T-Mobile, Verizon, Sprint and US Cellular. Improve data speeds and voice quality for cell phones, tablets and hot spots.
True heat sink design
The booster has an integral aluminum design that acts as a heat sink for the unit. High heat components on the circuit board are carefully bonded to the aluminum chassis to ensure that the system can remain cool during operation.

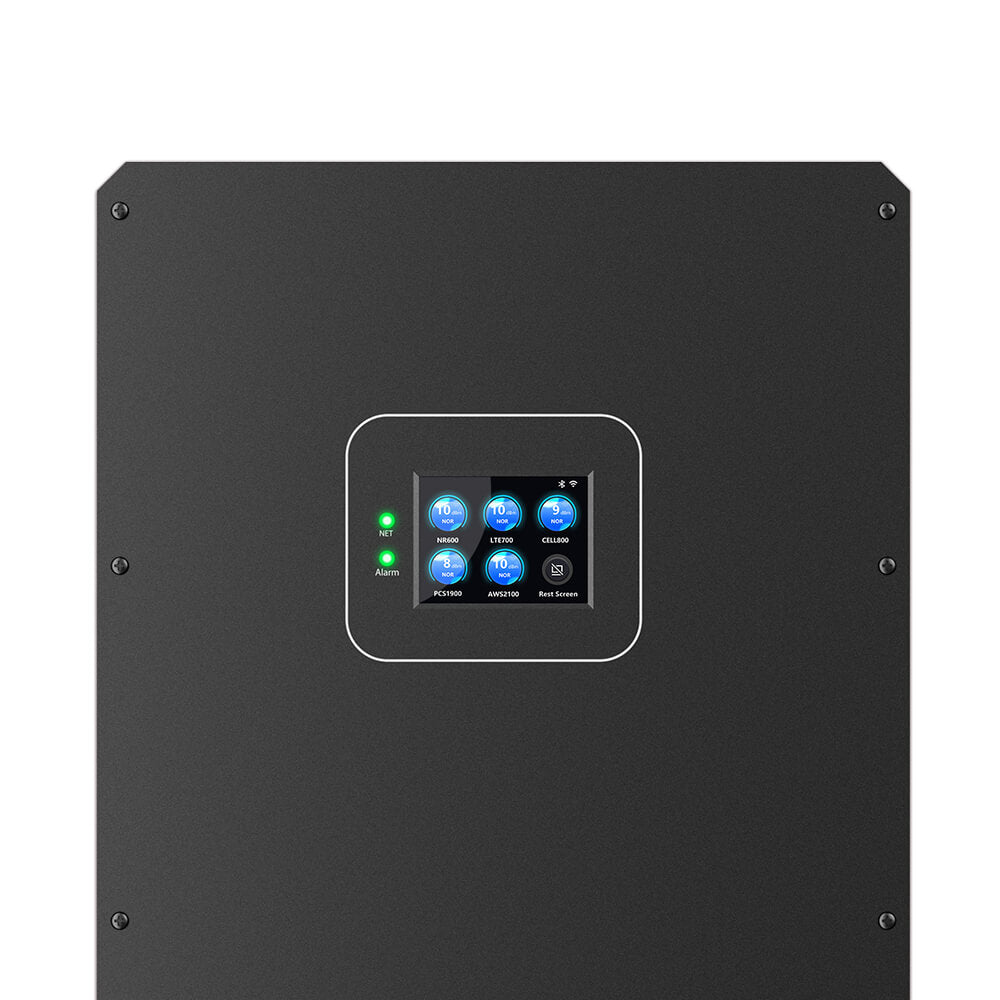

LCD display
View the booster performance by using the LCD display of gain and power output data.
Optimize Installation the Signal Supervisor App
Optimize antenna system
The signal meter tool on the HiBoost Signal Supervisor app will help users find the best position for the outdoor antenna.
Remote monitoring
Ensure that the booster is performing properly by setting up push-notifications and monitoring your booster from anywhere at all times.
Dedicated technical support
Need help with installing a booster? Chat with the HiBoost technical support directly from the Signal Supervisor app for remote troubleshooting.
USE CASE AND INSTALLATION
Midwest State Courthouse 25k sq ft
- Signal inside was hit and miss and increasingly worse the closer to the center
- Option of two conventional boosters or the Hiboost 100K
Solution
- Using the 100K provided balanced coverage throughout
- First survey showed 50% of the space had unusable signal
- After completion,we had 100% usability throughout the building
4-floor underground 250k sq ft parking garage
- Old 3W Verizon DAS Syetem no longer working from 2010
- Needed a solution to replace the old system
- Caveat,that we use as much of the existing cabling as possible
Solution
- Optimized the outside donor antenna by moving it to the roof
- Replace all existing antennas with 5G antennas
- Re-engineered using four 100K amplifiers
- 5G signal was provided and EV chargers where now connected
Tech Specs
Band 71 / Band 12 / 17 / Band 13 / Band 5 / Band 2 / 25 / Band 4
663-698 / 698-716 / 776 – 787 / 824-849 / 1850-1915 / 1710-1755
617-652 / 728-746 / 746 – 757 / 869-894 / 1930-1995 / 2110-2155
WCDMA, UMTS, CDMA, HSPA+, EVDO, LTE, NR and all cellular standards
95 dB
UL 23 dBm, DL 27 dBm
31 dB / 1 dB step

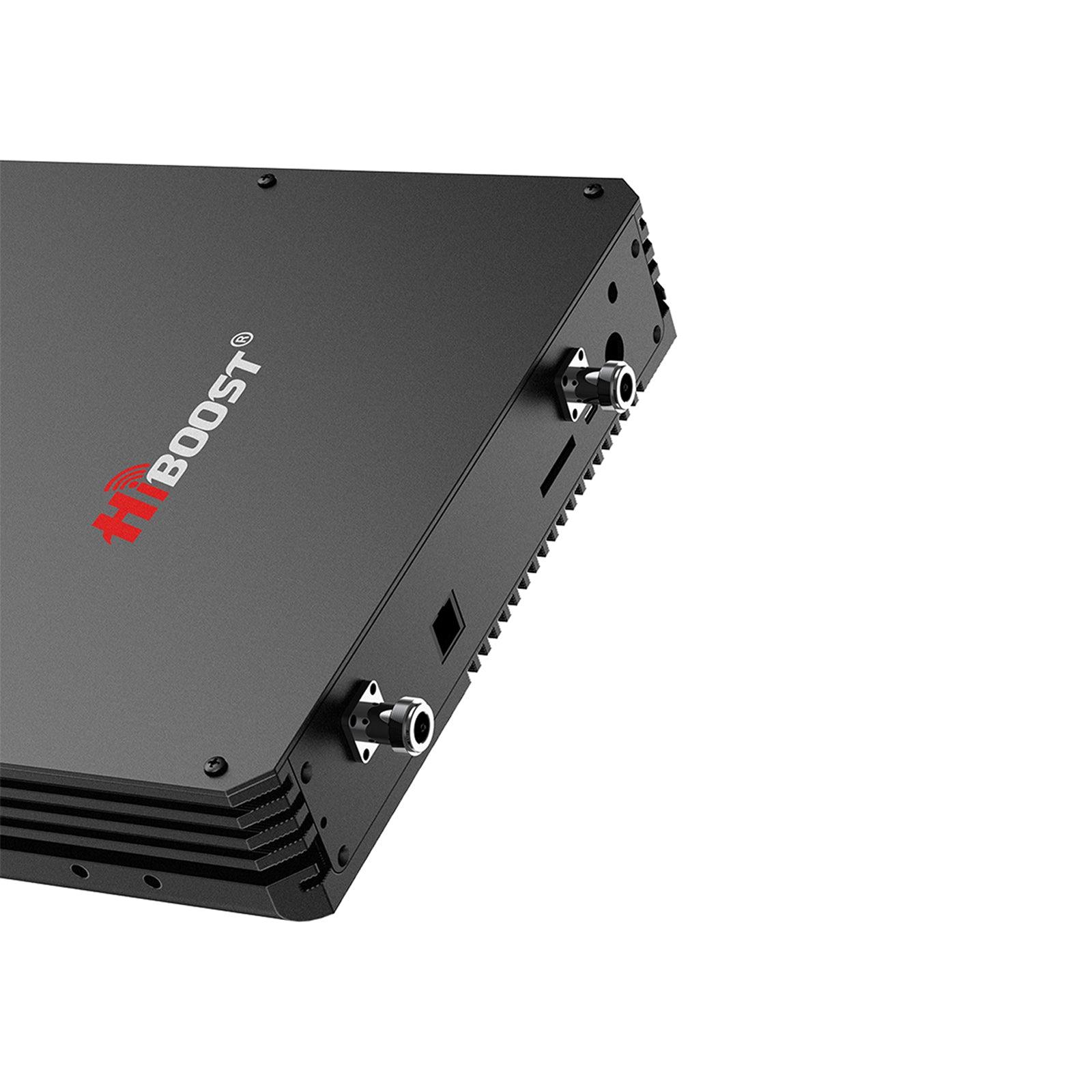

N-Female
50 ohm
IP40
11*15.7*2.1 inch
≤ 17.6 lbs.
Input AC100~240 V, 50/60 Hz, Output DC 12 V / 8.5 A
