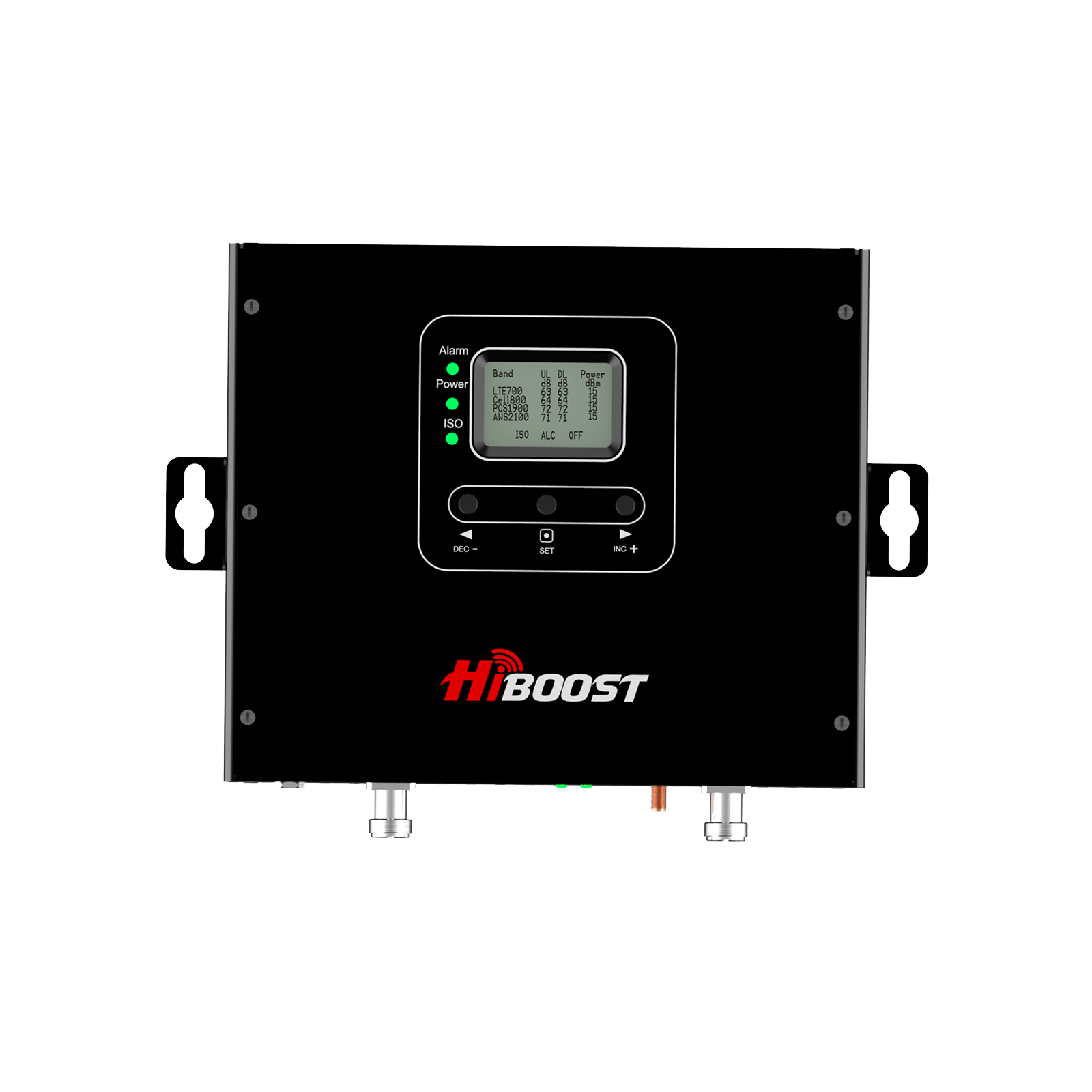

HiBoost SLT (20K Cellular Booster for Office) PRO20-5S-BTW
SLT’s (20K Cellular Booster for Office) powerful boosting capabilities easily cover a range of up to 25,000 square feet and boast a +70-decibel max gain.
Networks : 3G and 4G LTE
Coverage : up to 25,000 sq. ft.
Max.Gain : 70 dB
- Powerful antenna system
- Quality industrial grade design
- Easy to install via HiBoost App
LCD display
View the booster performance by using the LCD display of gain and power output data.
Remote access
Check the current status of the Smart Link cell phone signal booster directly from the Signal Supervisor mobile app.
Powerful design
Boost performance for every carrier
Users can boost signal for any type of cellular device on any network such as AT&T, T-Mobile, Verizon, Sprint and US Cellular. Improve data speeds and voice quality for cell phones, tablets and hot spots.
High-Performance transmission cables

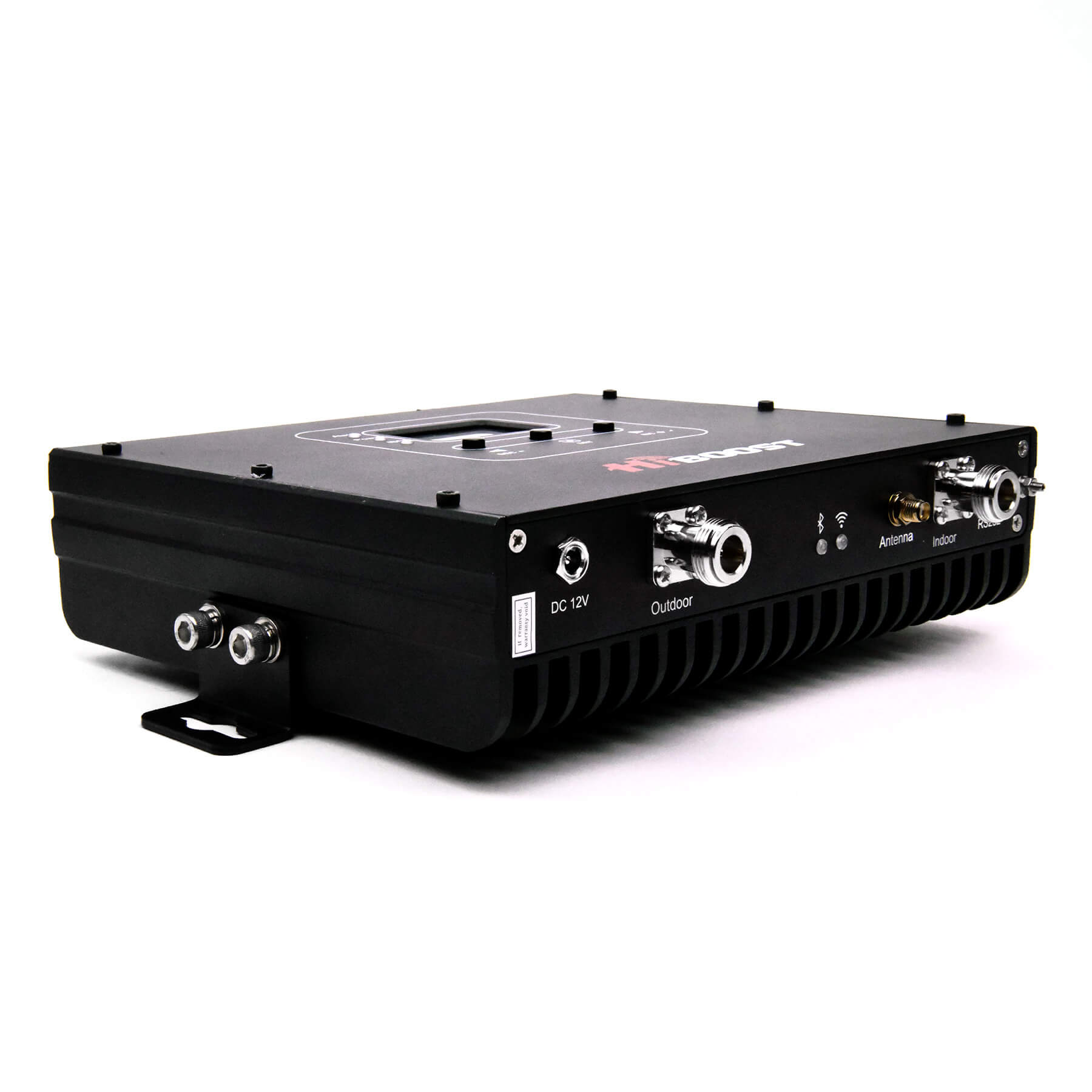

Compatible with HiBoost’s 400 Low-Loss Coaxial Cables that have a heavy-duty outer installation and type N-connectors. These cables protect the cell phone signal booster system from rain, snow, dirt and dust.

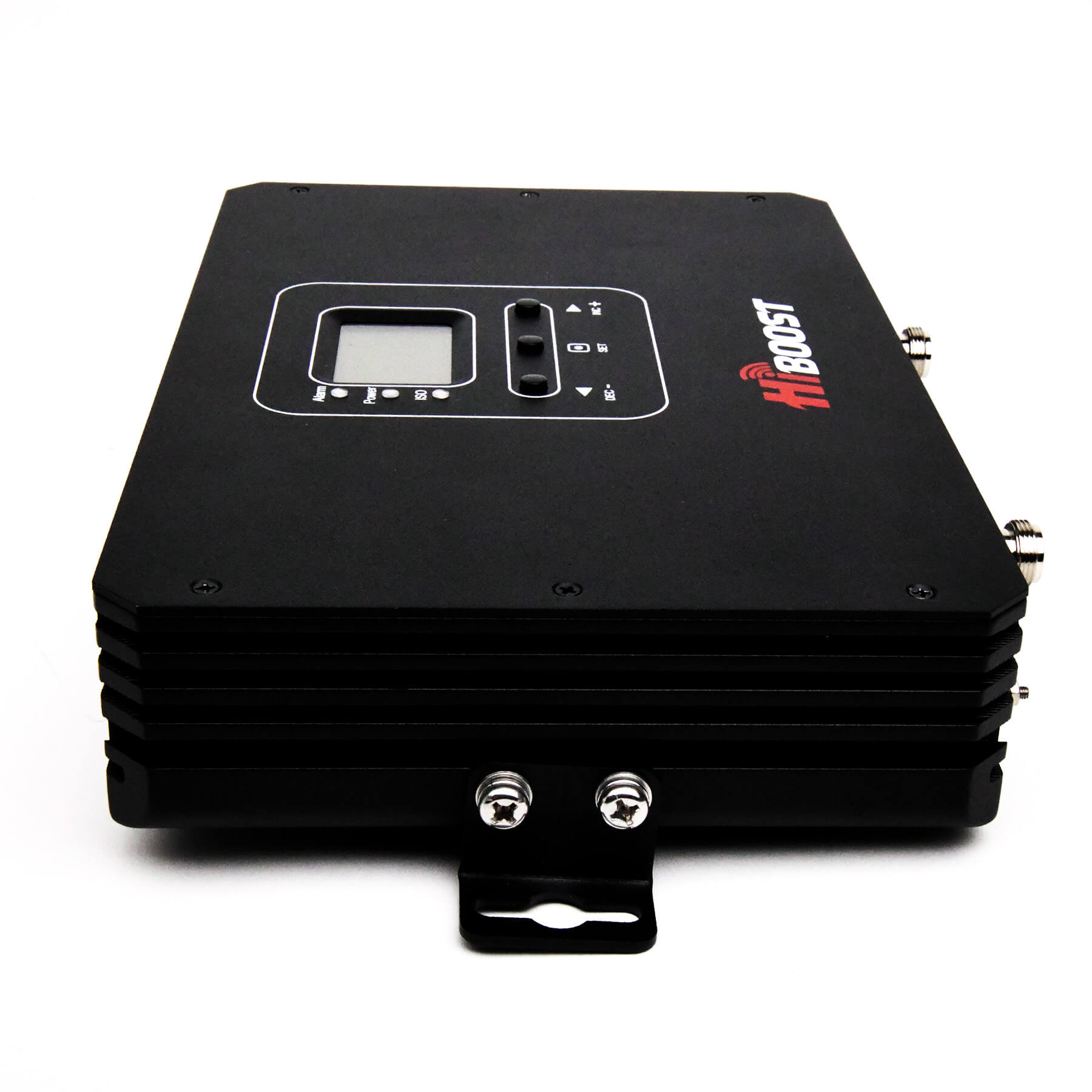

True heat sink design
The booster has an integral aluminum design that acts as a heat sink for the unit. High heat components on the circuit board are carefully bonded to the aluminum chassis to ensure that the system can remain cool during operation.
Optimize Installation the Signal Supervisor App
Optimize antenna system
The signal meter tool on the HiBoost Signal Supervisor app will help users find the best position for the outdoor antenna.
Remote monitoring
Ensure that the booster is performing properly by setting up push-notifications and monitoring your booster from anywhere at all times.
Dedicated technical support
Need help with installing a booster? Chat with the HiBoost technical support directly from the Signal Supervisor app for remote troubleshooting.
Tech Specs
698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755
728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155
Band 12 / Band 13 / Band 5/ Band 25-2 / Band 4
CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all other cellular standards
70 dB
UL 24 dBm, DL 12 dBm
≥ 25 dB / 1 dB step
N-Female
50 ohm
IP40
8.7 in×7.3 in ×2.2 in / 220 mm×185 mm×55 mm
≥ 8.8 lbs / 4kg
Input AC 100~240 V, 50/60 Hz, Output DC 12 V/3 A
