Always stay connected, no matter where you are. With our most powerful booster and strongest antenna, RVs can stay connected on the road and at the campground. HiBoost Travel 2.0 RV is our most powerful multi-user vehicle booster yet. It goes 74% farther than the Travel 2.0 Car, picking up cell phone signals and boosting them on the road and in campgrounds.
Today I’m going to show you how to install the Travel 2.0 RV Cell Phone Signal Boosters, don’t worry if this task seems intimidating at first, our installation process is simple and easy to understand, and the installation can be done with ease for most people, this booster works with any type of RV Class A, Class C trailer and Toy Hauler, and no matter what type of RV you own, the same Process The driver for the Travel 2.0 RV comes with the driver for the GX booster, an external antenna kit and an internal antenna 30 feet of coaxial cable for the external antenna, 13 feet of coaxial cable for the internal antenna 110V power supply 12V hardwired power supply, cable bracket and tie downs, and a weatherproof cable inletCovering all the signals you need to complete a professional installation, the booster works by capturing outside cellular signals to work, your RV uses an external antenna, which then passes the signal to the internal signal booster, which amplifies the signal and sends it to the internal antenna, which broadcasts a stronger signal inside your RV.
Then when you make a phone call the signal booster sends a stronger signal back to the tower allowing you to stay connected, making the installation even easier, we have marked each step on the Travel 2.0 RV Cellular Signal Booster instructions, on the individual components, follow these instructions step by step and you will be up and running in no time.
6 Easy Steps To Install A Cell Signal Booster In An RV
- Step 1 Assemble and Mount the Outside Antenna
- Step 2 Connect the Cable to the Outside Antenna
- Step 3 Connect the DC Power Supply to the Booster.
- Step 4 Download the Signal Supervisor APP, register ID and booster.
- Step 5 Place Inside Antenna & Connect the Cable
- Step 6 Fix the Inside Antenna and the Booster
Alright. Here’s how to install it.
Step 1 Assemble and Mount the Outside Antenna
1.1 Determine where you would like to set up the outside antenna

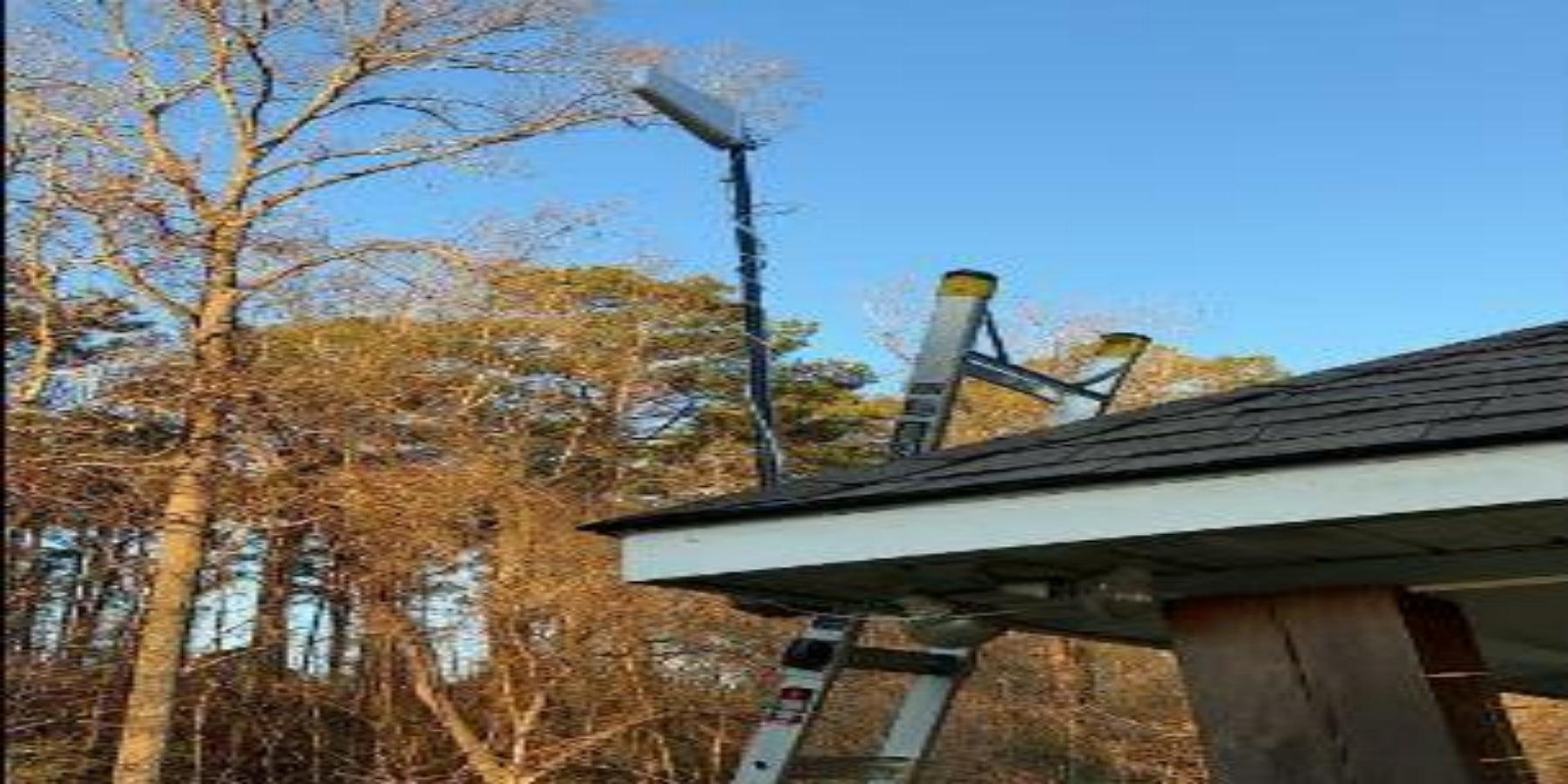

Usually, the outside antenna is mounted to a ladder at the top of the vehicle vertically and as high as hige as possible so htat it can get a good signal.
Note: Please make sure the outside antenna stay below the height limit allowed by law.
1.2 Assemble the outside antenna
【Three-proof Designed Outside Omni-Directional Antenna】The unique outside antenna of the cell phone booster is designed with special techniques which can withstand extreme shaking while being protected from dust, oil, and water.FCC Approved ID: OWWC110505S
1) Insert the cable through the pole and then through the side exit adapet.
2) Screw into place.
Notes:
1) The accessories include 2 poles and you can decide to use 1 or 2 depending on the situation
1.3 Fix the outside antenna
Use the provided accessories to fix the outside antenna to the ladder.
Step 2 Connect the Cable to the Outside Antenna
Connect the booster and the outside antenna with the 30’ cable.
Step 3 Connect the DC Power Supply to the Booster.
Use power supply or DC Power supply.
Step 4 Download the Signal Supervisor APP, register ID and booster.
Register an ID first and log in.
Add the booster to the device list.
Step 5 Place Inside Antenna & Connect the Cable
Place the inside antenna where you would like to cover signal and connect it to the booster.
Use the Signal Supervisor to help install
The booster will work at best if the gain reaches 50 dB. But if you can’t get so,at least ensure the gain on the gauges reaches 46-50Db. If not, please kindly adjust the position of the inside antenna.
Step 6 Fix the Inside Antenna and the Booster
Fix the inside antenna with the provided double-side tape.
Fix the booster with the provided Hook & Loop.
Enjoy your boosted signal!
Booster Light Lindicators
Technical Specifications
For more information
Download Signal Supervisor or enter our website.
HiBoost has owner exclusive App: Signal Supervisor, to View the live working status of signal booster. ①Offer a detailed installation video to have a hassle free setup without tool, No need professional technician. Approx. 20, don’t worry that the cell phone signal booster kit comes also with a user-friendly guide ②gives a professional technical online after-sales service.
a. You can download the specific user manual.
b. You can reach our technical support for help.
Now your Travel 2.0 RV Signal Booster is up and running, giving you an enhanced cell signal. The booster uses your existing cell signal to give you improved cell coverage within your RV. The coverage area within your RV will depend on How strong is the signal that can be received in the area? A signal booster cannot create a signal out of thin air with a very weak signal outside your RV. You may need to get closer to the inside antenna to stay connected. The booster will provide coverage up to 10 feet away.
RV Signal Booster FAQs
Are RV Cell Boosters Worth It?
If you want a surefire way of staying connected while camping or traveling to your next destination, they are worth it.
Do RV Boosters Work with Mobile Hotspots?
Yes. Mobile hotspots use 4G and 5G cellular signals to broadcast fast, reliable WiFi. An RV cellular booster will improve the signal your mobile hotspot receives for better results.
What is an RV Cell Phone Signal Booster?
Similar to a home signal booster, a vehicle cell booster captures an existing external signal and amplifies it in a limited space (in this case your car, truck or RV).
An RV cell phone signal booster is a system that receives the existing outside cell signal, passes it through a signal amplifier inside of the vehicle, and then broadcasts the boosted signal to an area within the RV. An RV signal booster typically consists of an outside antenna, a signal amplifier, an inside antenna, and low loss cable to connect all of the components together. The outside antenna is usually mounted to the roof or back ladder of the RV, and then connected to the signal amplifier with a cable. The signal amplifier is located within the RV and is connected to the inside antenna by a low loss cable, which is mounted in the area of the RV where you need better signal.
Do RV Cell Phone Boosters Really Work?
The RV life will take you to many beautiful and exciting locations. Unfortunately, many of these locations do not offer adequate cell service. If you are always on the go in your RV, an RV cell phone booster is an investment worth making to help you stay connected to family, friends, and the world. In the event your RV breaks down or requires repairs, you will have a reliable cell signal. Being able to browse the internet and locate a local towing company and auto shop that can handle your specific needs is vital when you are in a tight spot.
How Do RV Cell Phone Boosters Work?
RV signal boosters take your outside 5G/4G/LTE cell signals and deliver them even stronger inside. They use:
An Outside Cellular Antenna – Captures your existing outside signal. Depending on cellular booster configuration, it’s typically installed on the roof, side mirror, or railing. RV outside antennas can be either omnidirectional or directional.
An Amplifier – Amplifies the cellular signals received from the outside antenna. Amplification power varies across signal boosters.
An Inside Antenna – Broadcasts the boosted signal inside the RV. Depending on included RV inside cellular antenna, it can be installed on the dash, a flat surface, or a wall.
